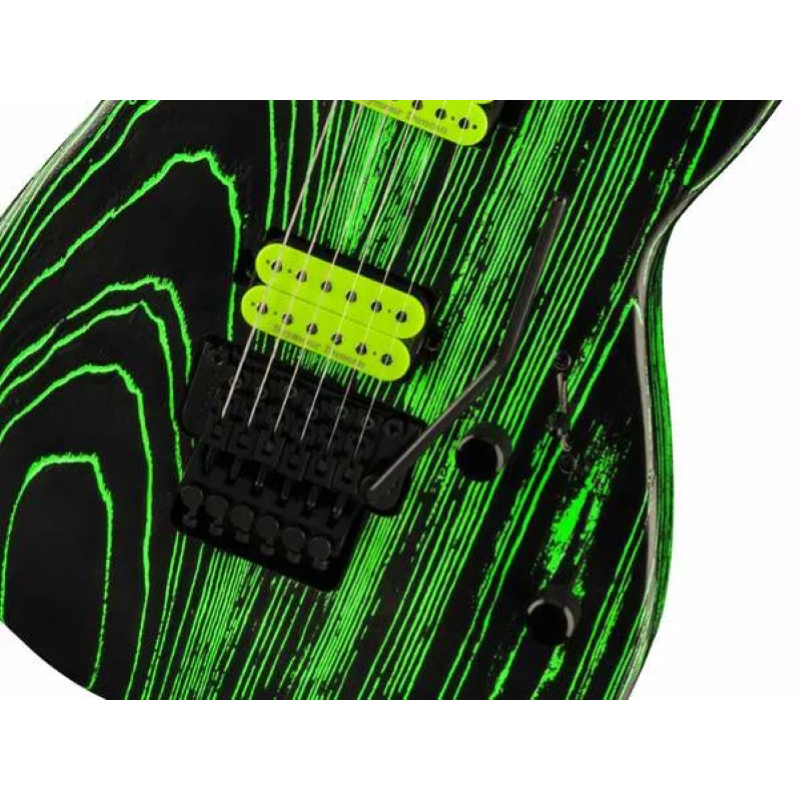

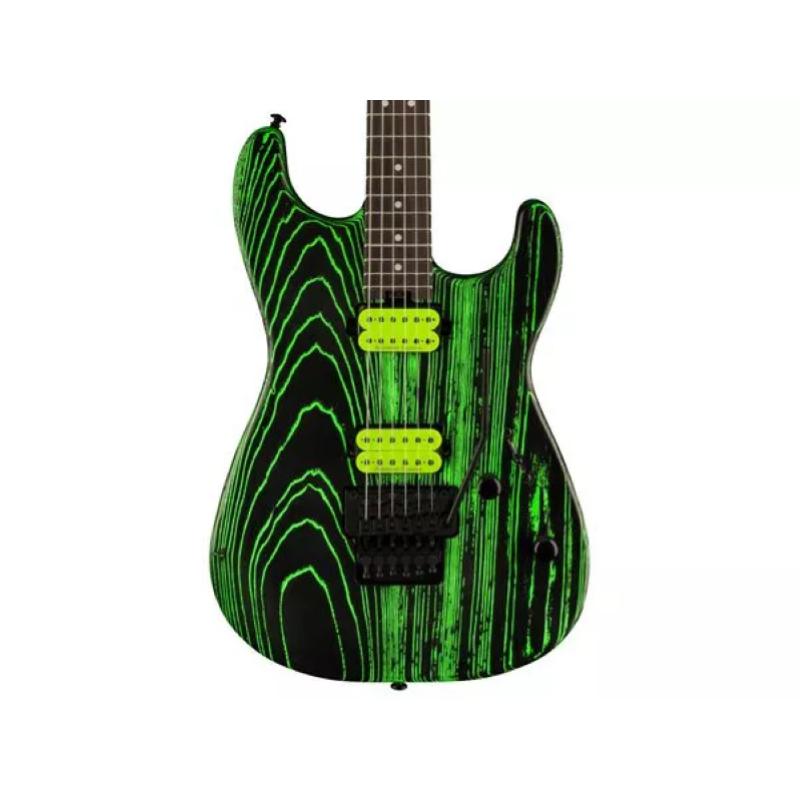

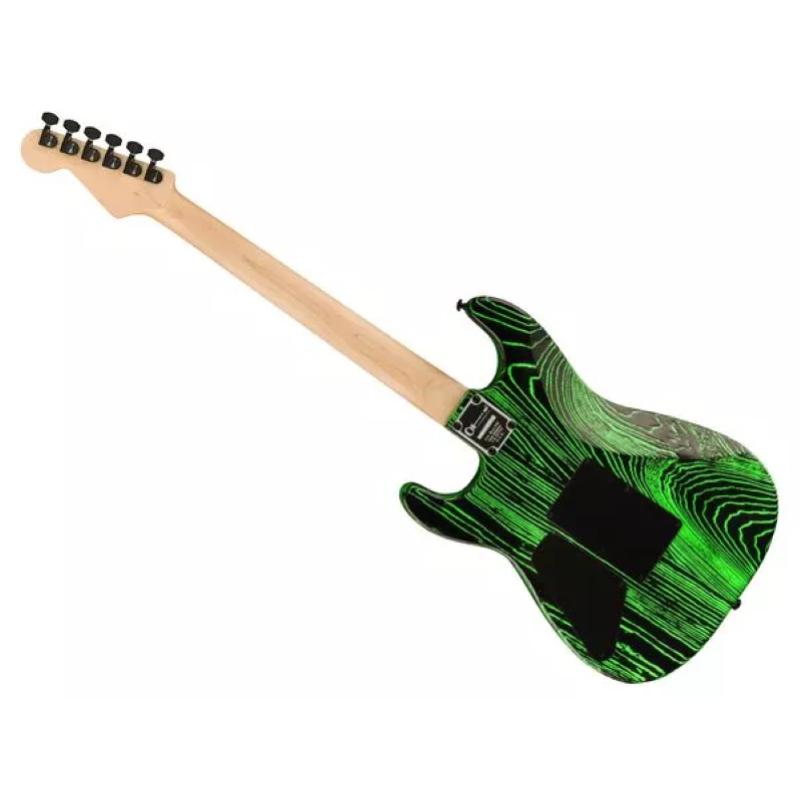

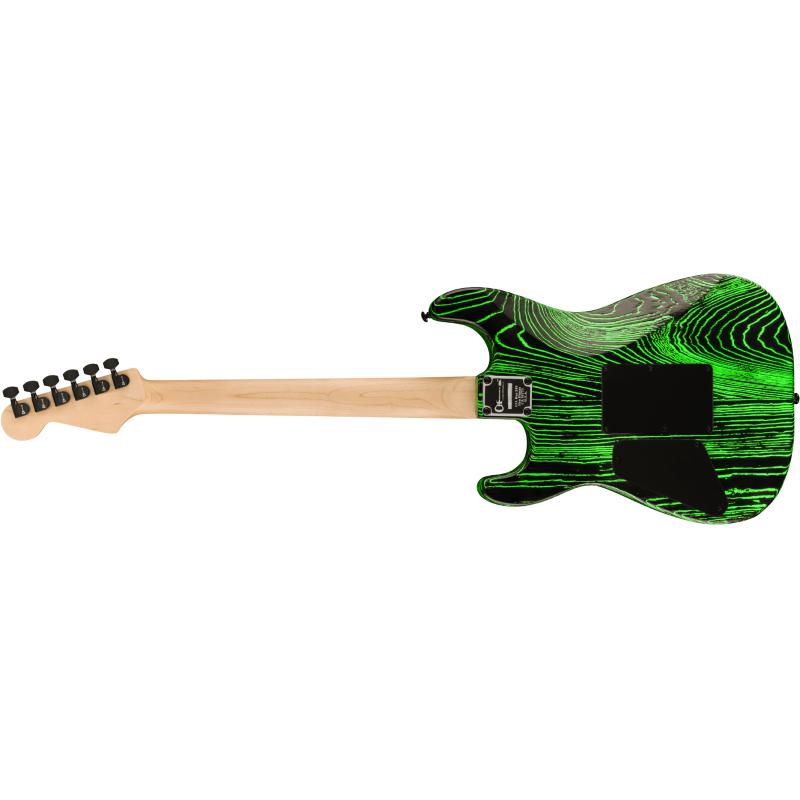

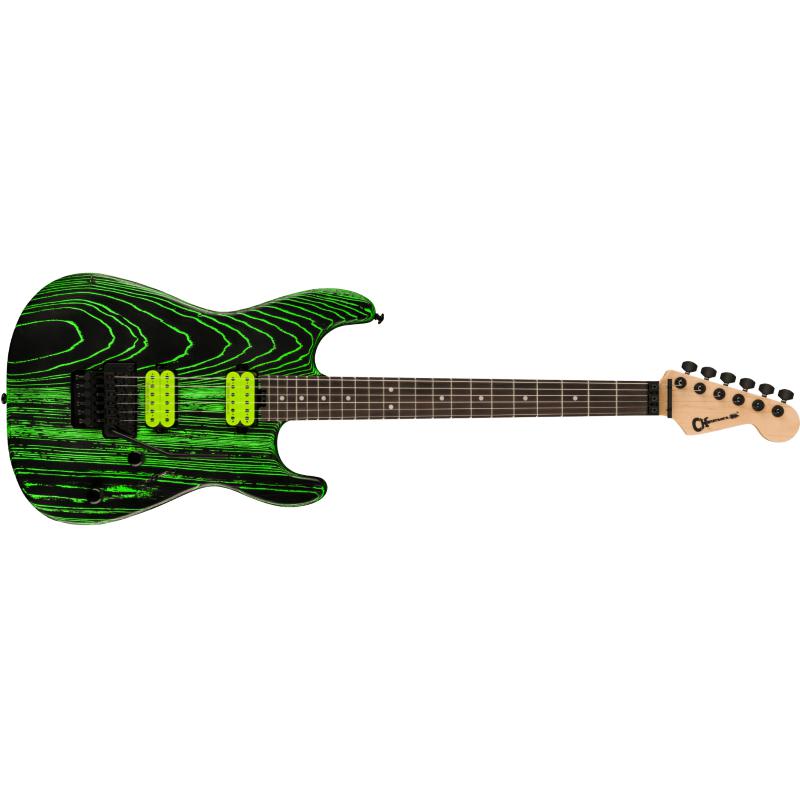

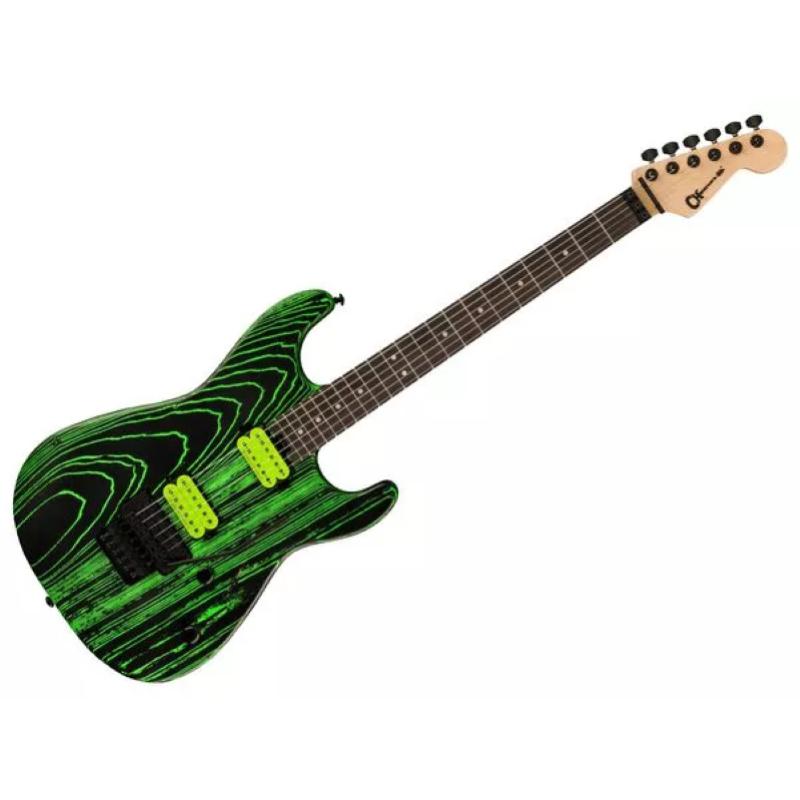

Charvel Pro-Mod San Dimas® Style 1 HH FR E Ash, Ebony Fingerboard, Green Glow

The Pro-Mod Series continues upon Charvel’s storied legacy of innovative excellence in high-performance guitar design, offering the latest technology and top-notch features that modern players need. An ideal instrument for dazzling high-speed playing, the Pro-Mod San Dimas® Style 1 HH FR E Ash boasts scorching sound, stunning style and grin-inducing playing feel and performance.

SeriesPro-Mod
ColorGreen Glow
Body FinishSatin
Body ShapeSan Dimas® Style 1
Body MaterialAsh
Neck MaterialMaple
Neck ConstructionBolt-On with Graphite Reinforcement
Neck FinishSatin
Neck ShapeSpeed Neck with Rolled Fingerboard Edges
Scale Length25.5" (648 mm)
Fingerboard Radius12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard MaterialEbony
Number of Frets22
Fret SizeJumbo
Nut MaterialFloyd Rose® 1000 Series Locking
Nut Width1.6875" (42.86 mm)
Position InlaysWhite Dot
Side DotsWhite
Truss Rod NutHeel-Mount Truss Rod Adjustment Wheel
String TreesFloyd Rose® Retainer Bar

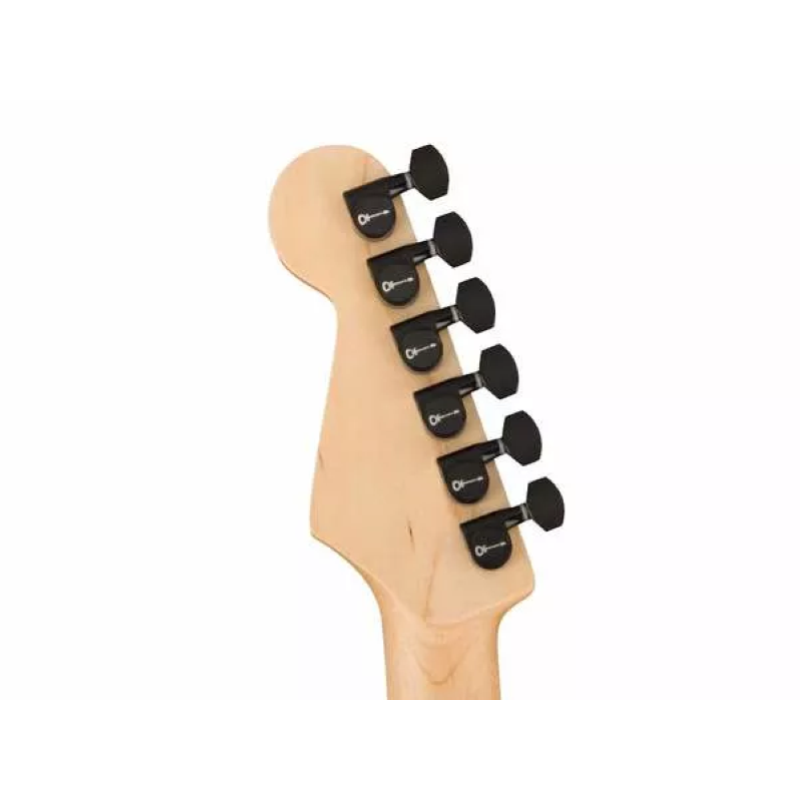

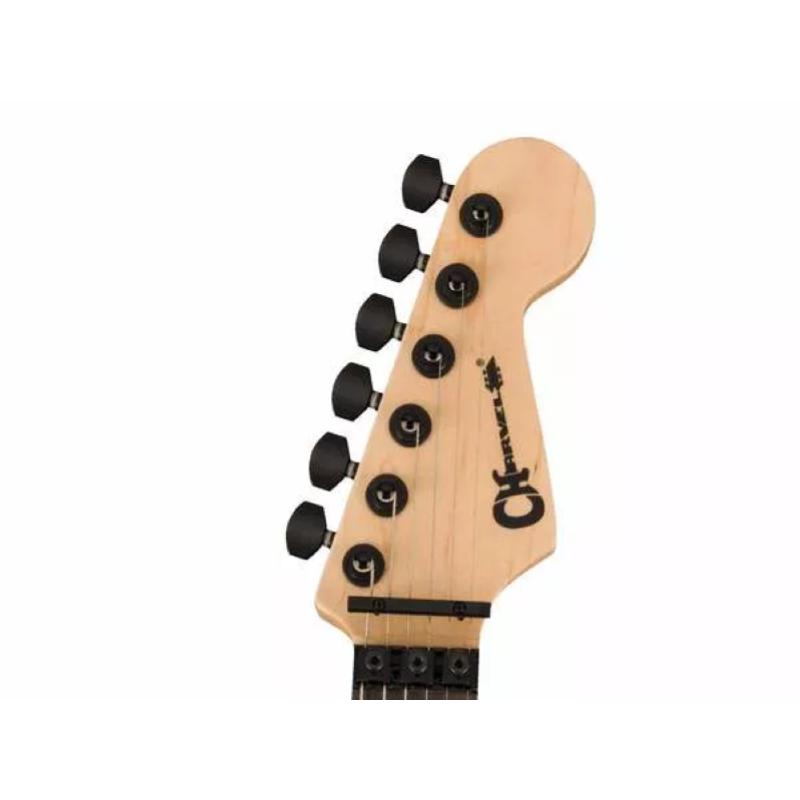

HeadstockLicensed Fender® Stratocaster®
Neck Plate4-Bolt Serialized
Bridge PickupSeymour Duncan® JB™ TB-4
Neck PickupSeymour Duncan® '59™ SH-1N
ControlsVolume (Push/Pull Coil Split), Tone
Pickup Switching3-Position Blade: Position 1. Bridge Pickup, Position 2. Both Inner Coils, Position 3. Neck Pickup - (Split Engaged) - Position 1. Bridge Outer Coil, Position 2. Both Outer Coils, Position 3. Neck Outer Coil
Pickup ConfigurationHH
BridgeFloyd Rose® 1000 Series Double-Locking Tremolo (Recessed)
Hardware FinishBlack
Tremolo ArmFloyd Rose® 1000 Series Locking
Tuning MachinesCharvel®-Branded Die-Cast
Control KnobsDome-Style
Switch TipBlack
