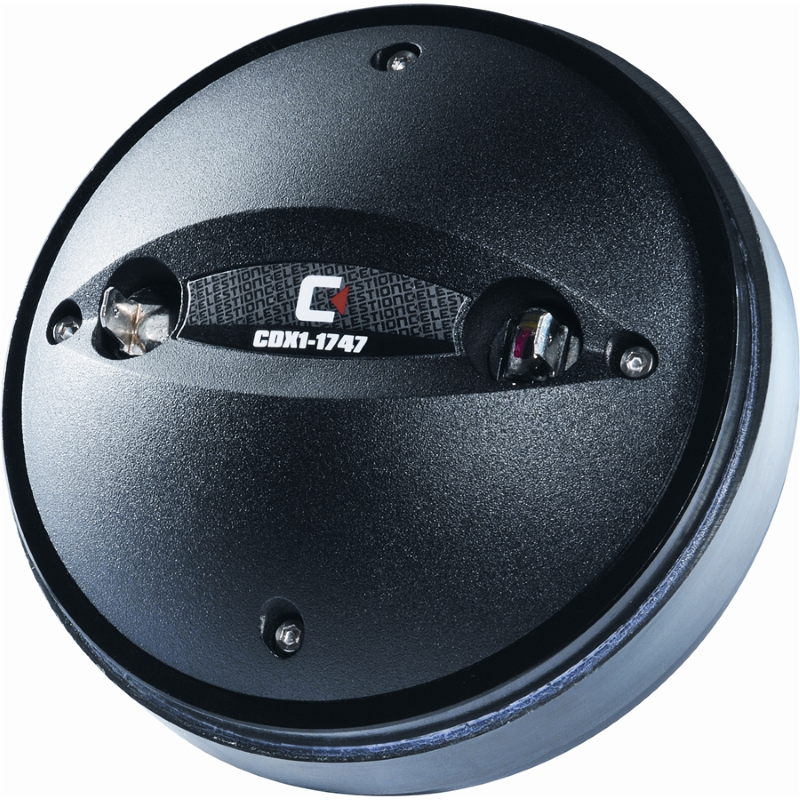

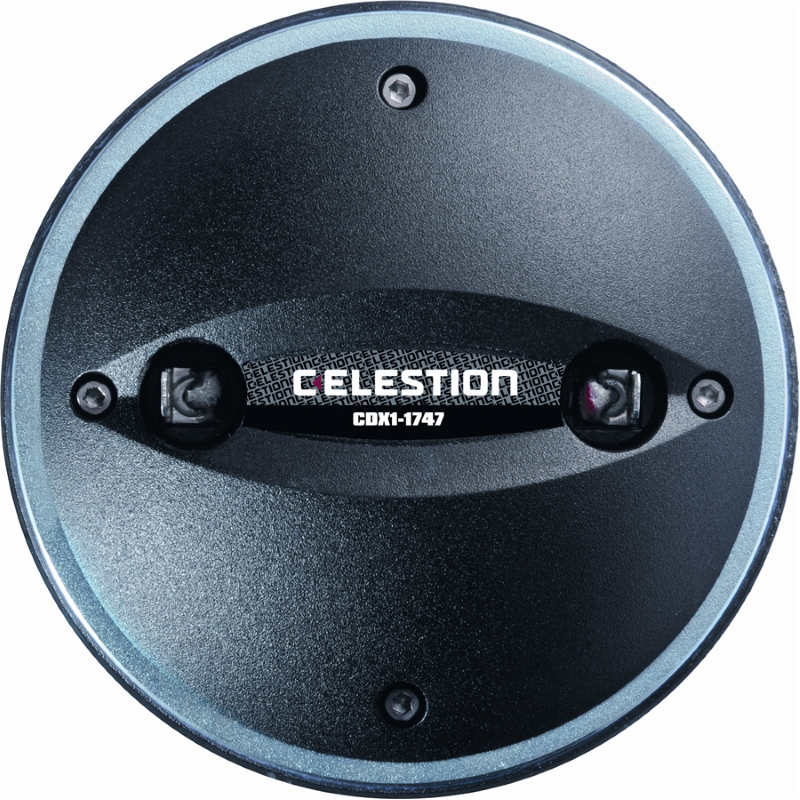

Celestion CDX1-1747 60W 8ohm HF Ferrite

Celestion - CDX1-1747 60W 8ohm - HF Compression Driver - FerriteDriver a compressione con magnete in ferrite, uscita da 1", potenza 60Watt, impedenza 8ohm,diaframma in polymide (poliimmide), fissaggio con viti (bolt).Voglia di audio Fai da Te? Per il progetto di un diffusore PA 15" 2-vie, clicca quiDesign curato, collaudato e messo a disposizione direttamente da CelestionCaratteristiche- 1" exit, ferrite magnet compression driver with 1.75" edgewound copper clad aluminium voice coil- 60Wrms power handling (AES standard) and 110dB sensitivity- Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for reduced distortion and even greater reliability of performance- One piece Polyimide diaphragm and surround- Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic designSpecifiche GeneraliPower rating(1): 60WrmsContinuous power rating(2): 120WNominal impedance: 8ohmFrequency range: 1000-20,000HzSensitivity(3): 110dBRecommended min. crossover (12dB/oct): 2000Hz 12dB/octVoice coil diameter: 44mm/1.75inVoice coil material: Edgewound Copper Clad AluminiumMagnet type: FerriteDiaphragm material: PolyimideSurround material. PolyimideInformazioni di MontaggioWidth: 120mm/4.72inDepth: 53mm/2.08inWeight: 2.3kg/5.1lbFitting: Flange (2/3 M6 holes on 76/57.2, 3.0/2.224in PCD)Throat exit: 25.4mm/1.0inTrombe CompatibiliH1-9040P, H1-7050 "No Bell" Note(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.(2)Continuous Power Handling is defined as 3dB greater than the AES rating.(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.Per stampare la scheda prodotto, clicca quiPer una panoramica su tutta la serie Celestion CDX Ferrite, clicca quiPer consultare e scaricare la brochure originale Celestion Pro Audio, clicca qui
