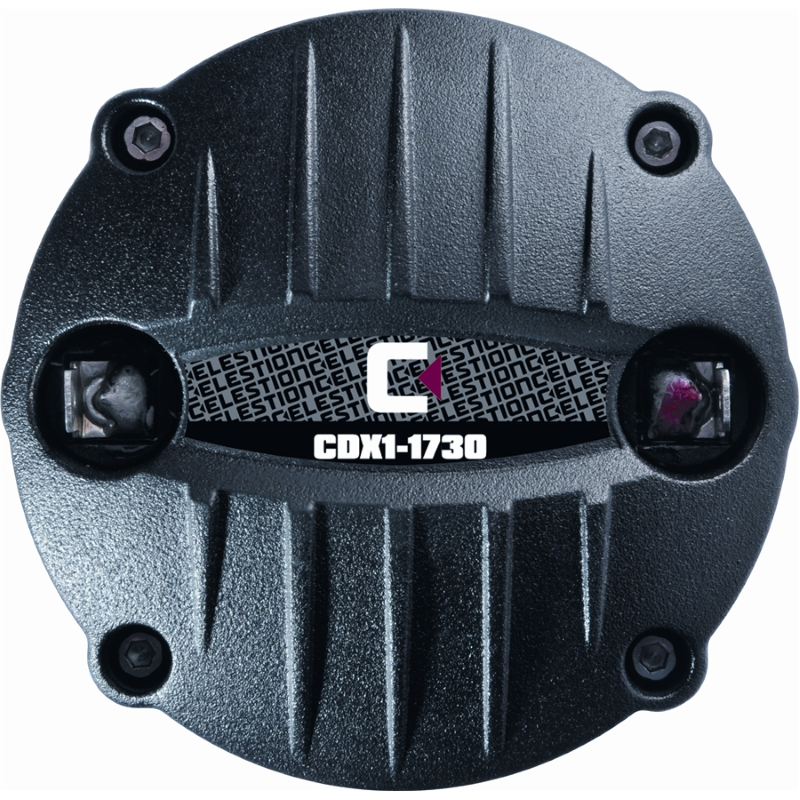

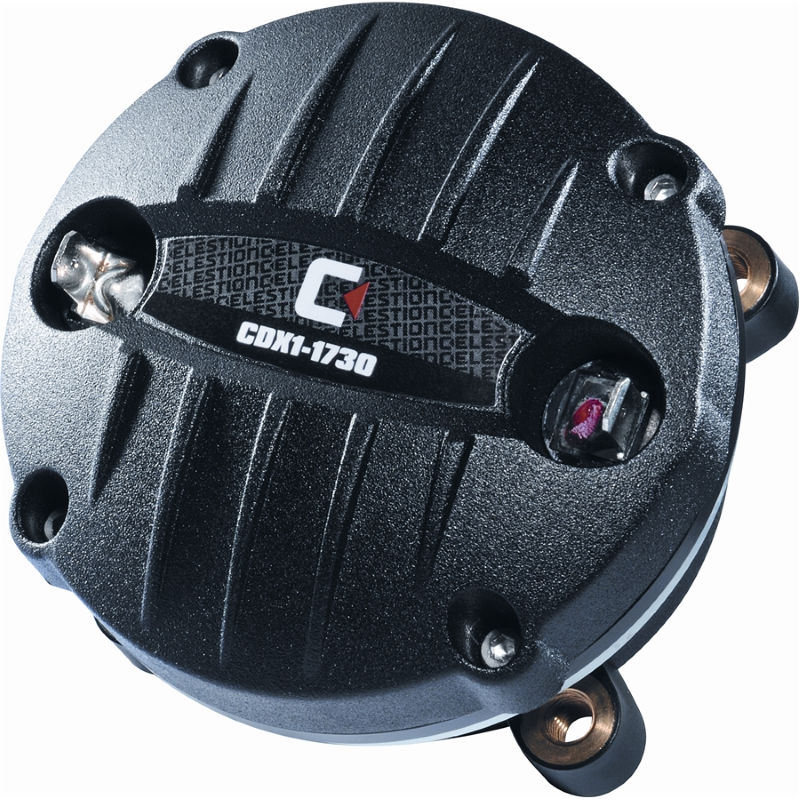

Celestion CDX1-1730 40W 8ohm HF Neodimio

Celestion - CDX1-1730 40W 8ohm - HF Compression Driver - NeodimioDriver a compressione con magnete in neodimio, uscita da 1", potenza 40Watt, impedenza 8ohm,diaframma in PETP (polietilene tereftalato), fissaggio con viti (bolt).Caratteristiche- 1" exit, neodymium magnet compression driver with 1.75" edgewound copper clad aluminium voice coil- 40Wrms (AES standard) power handling and 110dB sensitivity- Designed with Sound Castle™ clamping to ensure uniform pressure on diaphragm assembly for reduced acoustic distortion- One piece PETP film diaphragm and surround- Advanced Finite Element Analysis (FEA) tools used to create a very light weight, high powered compression driverSpecifiche GeneraliPower rating(1): 40WrmsContinuous power rating(2): 80WNominal impedance: 8ohmSensitivity(3): 110dBFrequency range: 1200-20,000HzRecommended min. crossover (12dB/oct): 2200HzVoice coil diameter: 44mm/1.75inVoice coil material: Edgewound copper clad aluminiumMagnet type: NeodymiumDiaphragm material: PETP filmSurround material: PETP filmInformazioni di MontaggioMaximum width: 88.5mm/3.48inMinimum width: 82.0mm/3.23inDepth: 55mm/2.2inWeight: 0.65kg/1.4lbFitting: Flange (4 x M6 holes on 76mm/3in PCD)Throat exit: 25.4mm/1inTrombe CompatibiliH1-9040P, H1-7050 "No Bell" Note(1)Tested for two hours on plane wave tube using continuous band-limited pink noise as per AES standard. Power calculated on minimum impedance.(2)Continuous Power Handling is defined as 3dB greater than the AES rating.(3)Measured on axis at 1W/1m, using typical horn, in 2 anechoic environment.Per stampare la scheda prodotto, clicca quiPer una panoramica su tutta la serie Celestion CDX Neodimio, clicca quiPer consultare e scaricare la brochure originale Celestion Pro Audio, clicca qui
