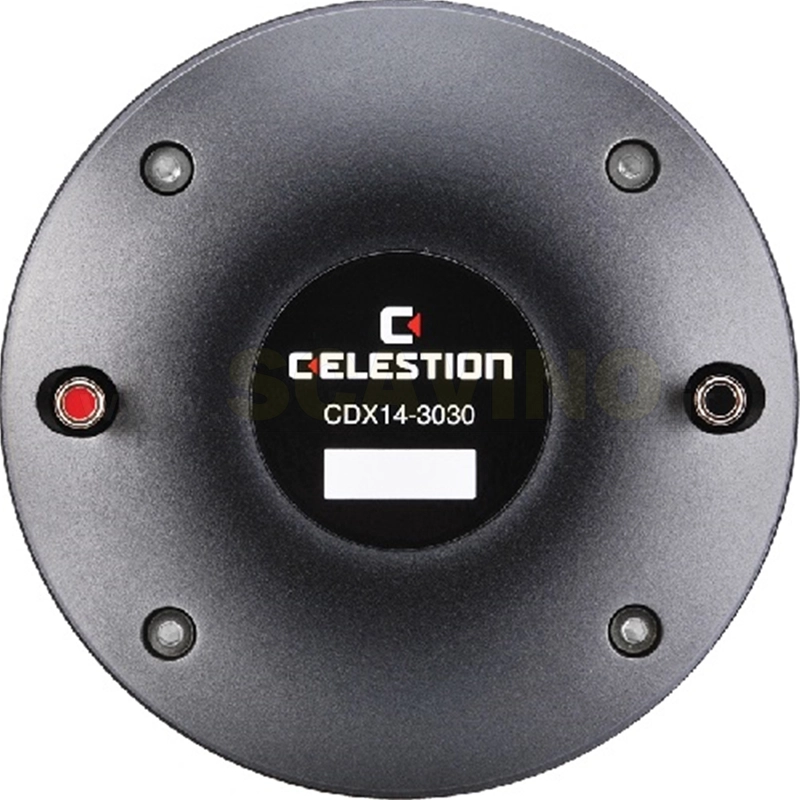

Celestion CDX14-3030 75W 8ohm HF Ferrite

Celestion - CDX14-3030 75W 8ohm - HF Compression Driver - FerriteFeatures - 1.4 exit, ferrite magnet, 3 voice coil compression driver provides 75Wrms (AES standard) power handling and 106.5dB sensitivity- Next generation Sound Castle™ soft clamping assembly reduces diaphragm stress for decreased distortion and even greater reliability of performance- One piece titanium diaphragm and surround- Finite Element Analysis (FEA) used to optimise both magnet assembly and acoustic designGeneral SpecificationsPower rating(1): 75WrmsContinuous power rating(2): 150WNominal impedance: 8ohmFrequency range: 500-18,000HzSensitivity(3): 106.5dBRecommended min. crossover (12dB/oct): 1000HzVoice coil diameter: 75mm/3inVoice coil material: Edgewound copper clad aluminiumMagnet type: FerriteDiaphragm material: TitaniumSurround material: TitaniumMounting InformationWidth: 180mm/7inDepth: 68mm/2.7inWeight: 4.88kg/10.7lbFitting: Flange (4 x M6 holes on a 102mm/4in PCD)Throat exit: 35.6mm/1.4inNote(1)Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.(2)Continuous Power Handling is defined as 3dB greater than the AES rating.(3)Measured on axis at 1W, 1m, using typical horn, in 2 anechoic environment.
