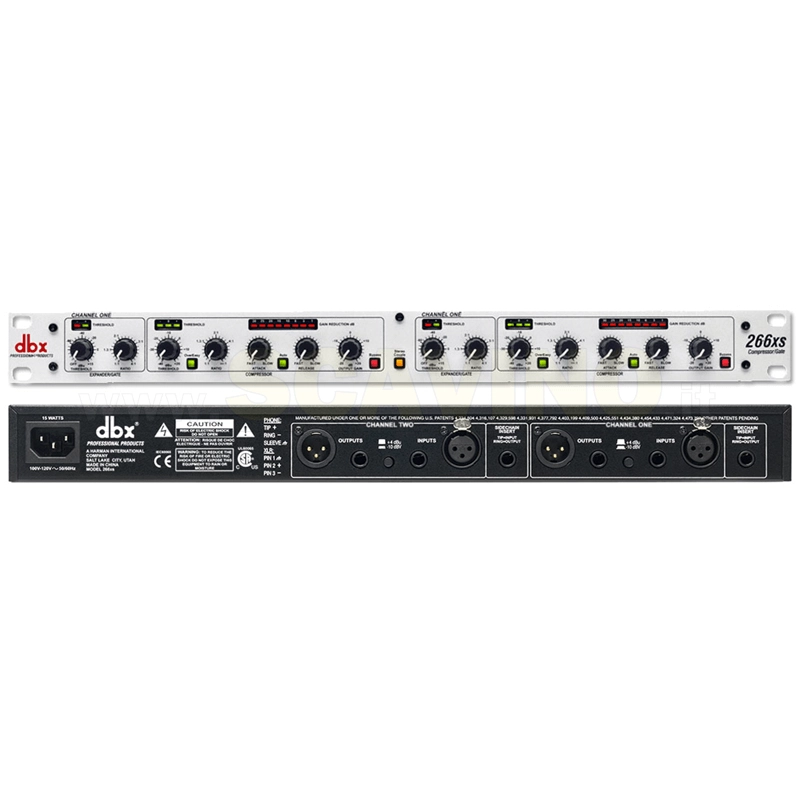

DBX 266XS Dual Compressor Gate a 2 Canali

L'aggiunta di un DBX266XS Compressor / Limiter / Gate al tuo suono dal vivo o in studio ti permette avere più controllo della dinamica per creare un suono più pulito e professionale. Avere un compressore nella vostra catena audio dà la possibilità di appianare livelli disomogenei, aggiungere sustain alle chitarre e dare un suono più profondo alla tua batteria. Inoltre aggiunge una maggiore chiarezza alle voci facendole risaltare rispetto agli strumenti circostanti.

INPUTS Connector: 1/4" TRS, female XLR (pin 2 hot) Type: Electronically balanced/unbalanced, RF filtered Impedance: 40kO balanced, 20kO unbalanced Maximum Level: >+22dBu Balanced or Unbalanced OUTPUTS Connector: 1/4" TRS, female XLR (pin 2 hot) Type: Impedance-balanced/unbalanced, RF filtered Impedance (+4dBu): 100O balanced, 50O unbalanced Impedance (-10dBu): 1kO balanced, 500O unbalanced Maximum Level: >+21dBu balanced/unbalanced into 2kO or greater; >+18dBm balanced/unbalanced (into 600O) SIDECHAIN INSERT Connector: 1/4" TRS Phone, Normalled: Ring = Output (send); Tip = Input (return) Impedance: Tip = >10kO (Input), Ring = 2kO (Output) Maximum Level: Tip = >+22dBu (Input), Ring = >+20dBu (Output) COMPRESSION Threshold Range: -40dBu to +20dBu Threshold Characteristic: Selectable OverEasy® or hard knee Compression Ratio: 1:1 to Infinity:1 Attack Time: Scalable Program-Dependent AutoDynamic? Release Time: Scalable Program-Dependent AutoDynamic? EXPANDER/GATE Threshold Range: -60dBu to +15dBu Expansion Ratio: 1:1 to 4:1 Attack Time: <100µSec Release Time: Program-Dependent SYSTEM Bandwidth: 0.35Hz - 90kHz, +0/-3dB Frequency Response (Flat): 20Hz - 20kHz; +0/-0.5dB, Noise: <-93dBu, unweighted (22kHz measurement bandwidth) THD + N: <0.2%; Any Amount of Compression @1kHz Intermodulation Distortion: <0.2% SMPTE Dynamic Range: >114dB, unweighted Interchannel Crosstalk <-95dB, 20Hz to 20kHz CMRR: >40dB, typically >55dB at 1kHz Stereo Coupling: True RMS Power Summing? POWER Power Consumption: 15 Watts Maximum Operating Voltage: 100 VAC 50/60Hz; 120VAC 60Hz; 230 VAC 50/60 Hz Operating Temperature: 0°C to 45°C (32°F to 113°F) PHYSICAL Dimensions: 1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm ) Weight: Net weight: 4.84 lbs (2.19 kg) Shipping weight: 6.6 lbs (2.99 kg) Note*: 0dBu = 0.775Vrms
